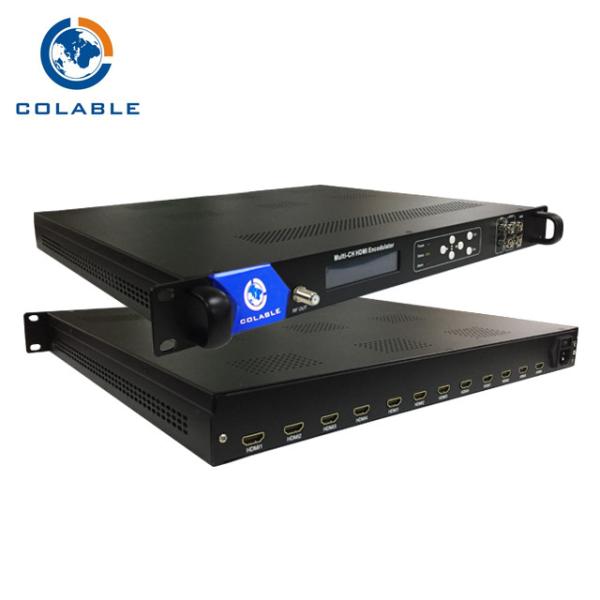

HDMI To ATSC H 264 HD Encoder Modulator For DTV DVB Headend COL5011H

Brand Name : Colable

Model Number : COL5011H

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T(Wire Transfer), Western Union etc

Supply Ability : 500sets per Month

Delivery Time : 2-5 working days

Packaging Details : Standard Export Carton with foam

Product Name : ATSC-T H.264 HD Encoder Modulator

Input : 8/12/16/24 HDMI + 2*ASI

Output : 4*Tuner RF + 2*ASI + IP (spts/mpts)

Tuner Optional : DVB-C/DVB-T/ATSC-T/ISDB-T

Vdieo Encoding : MPEG-4 AVC H.264

Audio Encoding : MPEG-1 Layer-2

Management : WEB NMS

Features : Encoding-Multiplexing-Modulation

Applications : Digital TV, DSTV, CATV, DTT etc

Contact Now

DTV DVB Headend HDMI to ATSC H.264 HD Encoder Modulator

Model: COL5011H 8/12/16/24*HDMI input Optional

Outline

COL5011H HD H.264 Encoder Modulator is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 8/12/16/24 HDMI input, 1000M IP output,4 number RF output (ATSC, ISDBT, DVB-C/-T),5 MPTS output and SPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Features

  • 8/12/16/24 HDMI input, MPEG-4 AVC/H.264 Video encoding
  • 1000M IP output over UDP and RTP protocol(MPTS and SPTS)
  • 4 RF output ( DVB-C, DVB-T, ATSC-T, ISDB-T, DTMB-T)
  • 2 ASI inputs
  • 2 ASI Independent output (optional) as copy of 5MPTS
  • Support “Null PKT Filter” function
  • Support PID Remapping/ PCR accurate adjusting
  • PID pass
  • LCD, key function
  • Control via web management, and easy updates via web

Specifications

Input HDMI (8/12/16/24 HDMI)
2 ASI inputs
output 4RF output(DVB-C/DVB-T/ATSC/ISDBT)
2 ASI output
IP output(SPTS and MPTS)IP output over UDP and RTP protocol
video Encoding MPEG-4 AVC/H.264
Resolution

Input:1920*1080_60P, 1920*1080_60i,1920*1080_50P, 1920*1080_50i,1280*720_60P, 1280*720_50P,

720*576_50i,720*480_60i,

Output:1920*1080_30P,1920*1080_25P,1280*720_30P,

1280*720_25P,720*576_25P,720*480_30P
Bit-rate 1Mbps~13Mbps(each channel)
Rate Control CBR
Audio Encoding MPEG1 Layer2
Sampling rate 44.1KHz and 48Khz
Bit-rate 64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
Resolution 24-bit
Audio Gain 0-255 Adjustable
Multiplexing Maximum PID Remapping 180 output pids per channel
Function PID remapping ( automatically or manually)
Accurate PCR adjusting
Modulator DVB-T RF number 4 DVB-T
Standard EN300744
FFT mode 2K
Bandwidth 6M, 7M, 8M
Constellation QPSK, 16QAM, 64QAM
Guard Interval 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
MER ≥42 dB
RF frequency 50~960MHz, 1KHz step
RFoutput level -34~ -10 dBm, 0.1db step
DVB-C RF number 4 RF output
Standard EN300 429/ITU-T J.83A/B/C
MER ≥40db
RF frequency 50~960MHz, 1KHz step
RFoutput level -34~-10dBm , 0.1dBm step
Symbol Rate 5.0Msps~7.0Msps,1ksps stepd
J.83A J.83B/J.83C
Constellation 16/32/64/128/256QAM 64/256 QAM
Bandwidth 8M 6M
ATSC RF number 4 RF output
Standard ATSC A/53
Bandwidth 6M
Constellation 8VSB
FEC RS(208 188)+Trellis
MER ≥40dB
RF frequency 50~960MHz, 1KHz step
RFoutput level -34~-10dBm , 0.1dBm step
ISDBT RF number 4 RF output
Standard ARIB STD-B31
Bandwidth 6M
Constellation QPSK, 16QAM, 64QAM
Guard Interval 1/32, 1/16, 1/8, 1/4
Transmission Mode 2K
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
MER ≥40dB
RF frequency 50~960MHz, 1KHz step
RFoutput level -34~-10dBm , 0.1dBm step
System function Network management(WEB)
Chinese and English language
Ethernet software upgrade
Miscellaneous Dimension (W*L*H) 550mm*515mm*140mm
weight 6kg
Environment 0~45℃(work); -20~80℃(storage)
Power requirements AC100~240V, 50/60Hz

Digital CATV & IPTV System

Encoder Modulator is hot used in digital free system, such as hotel, hospital etc.

HDMI To ATSC H 264 HD Encoder Modulator For DTV DVB Headend COL5011H

HDMI To ATSC H 264 HD Encoder Modulator For DTV DVB Headend COL5011H

Certificates

HDMI To ATSC H 264 HD Encoder Modulator For DTV DVB Headend COL5011H

Colable Electronics co.,ltd

Specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

  • Our experience: Standing in digital system solution more than 10 years, with reliable Team.
  • Our products: FTA & Descrambler Satellite Decoder, Encoder, Multiplexer, Scrambler, Modulator, Set Top Box etc.
  • Payment: Wire Transfer (T/T), Western Union, Paypal, Trade Assurance etc.
  • Delivery Date: 2-5 working days
  • Our services: Life-long Technical support, remote assistance
  • Warranty: 1 year for headend & STB

Please feel free to ask if you have any questions. Welcome !!!
